BoardView for Laptops Lenovo IdeaPad 3 17IRU7 / Lenovo V17 G4 IRU Project: NM-F531
- Manufacturer: Lenovo
- CPU: Intel Raptor Lake
- VGA: Intel DG2 / UMA
- RAM: DDR4
- SKU: 12657
- Unit: pcs
- Size: 1.59Mb
- Availability: In stock
- Tags:
5.25eur
BoardView for Laptops Lenovo IdeaPad 3 17IRU7 / Lenovo V17 G4 IRU
Project: NM-F531 Rev: 1.0

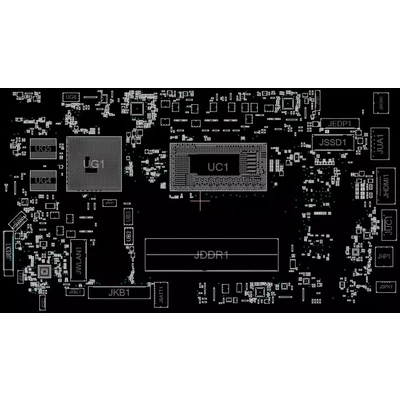

BoardView for motherboard marked KS770&KV782 NM-F531 Rev:1.0
Two sides.
Shows component markings/values, electrical circuits and other details.
The program for viewing is attached.
Electrical schematic diagram available in PDF format ( on request, not included in price ).
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
