ASUS S400CA, S500C, S500CA, V500C
SKU: 03280
ASUS S400CA / S500C / S500CA / V500C BoardView
- Manufacturer: ASUS
- SKU: 03280
- Unit: pcs
- Size: 1.25Mb
- Availability: In stock
- Tags:
2.50eur

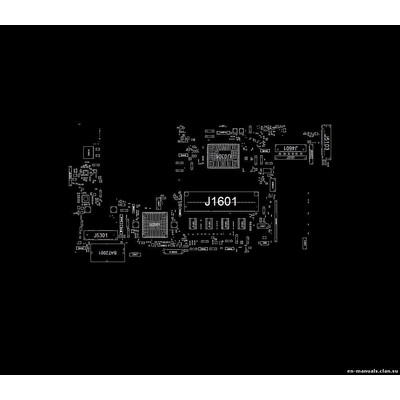

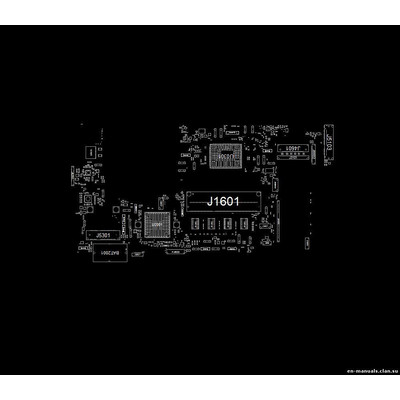

ASUS S400CA / S500C / S500CA / V500C BoardView
Project: S400CA Rev: 2.1, 3.1
BoardView for PCB marked S400CA MAIN BOARD
Two sides. Two revisions.
Shows the positional designation, labeling and other details.
The program for viewing is attached.
