Schematic diagrams for Laptops Acer Aspire ES1-420, ES1-421, ES1-422 Project: LA-C801P
- Manufacturer: Compal
- SKU: 00399
- Unit: pcs
- Size: 1.67Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

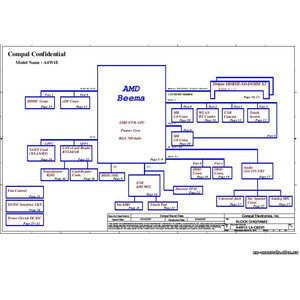

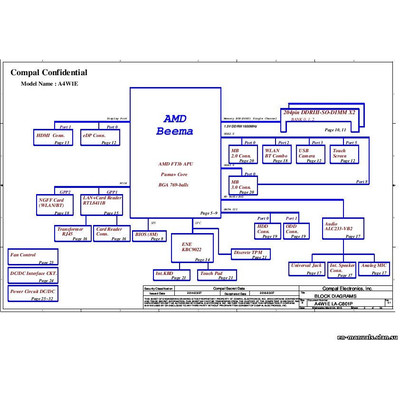

Schematic diagrams for Laptop Acer Aspire ES1-420 / Aspire ES1-421 / Aspire ES1-422
Project: Compal LA-C801P Rev: 1A
Schematic diagrams for PCB marked A4W1E LA-C801P
Format: PDF
Total pages: 34

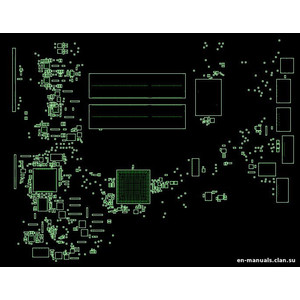

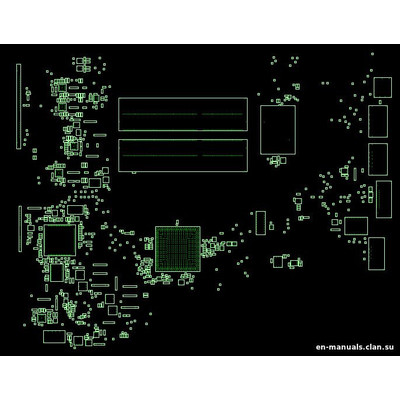

+ BoardView
The program for viewing is attached.
