Acer Aspire ES1-520 ES1-521 ES1-522 PCB: LA-D121P
SKU: 00407
Schematic diagrams for Laptops Acer Aspire ES1-520, ES1-521, ES1-522 Project: LA-D121P
- Manufacturer: Compal
- CPU: AMD Beema / Kabini / Carrizo-L
- GPU: UMA
- RAM: DDR3
- SKU: 00407
- Unit: pcs
- Size: 1.28Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptops Acer Aspire ES1-520 / Aspire ES1-521 / Aspire ES1-522
Project: Compal LA-D121P Rev: 1.0

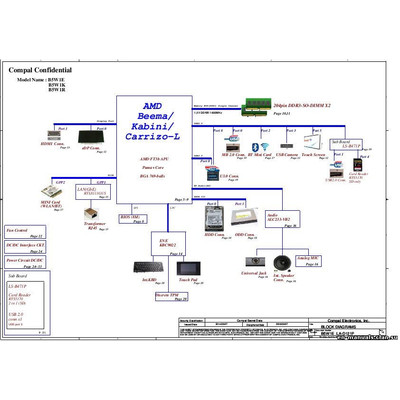

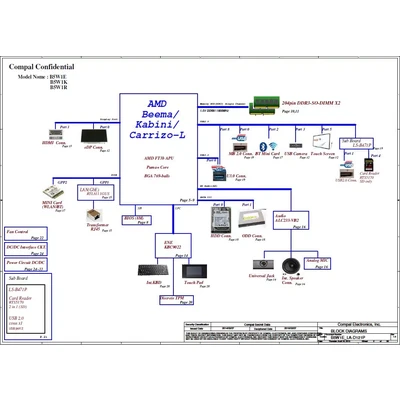

Schematic diagrams for motherboard marked B5W1E LA-D121P Rev:1.0
+ schematic diagrams for IO Board
Format: PDF
Total pages: 37

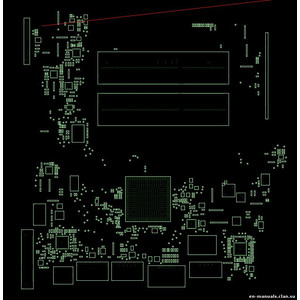

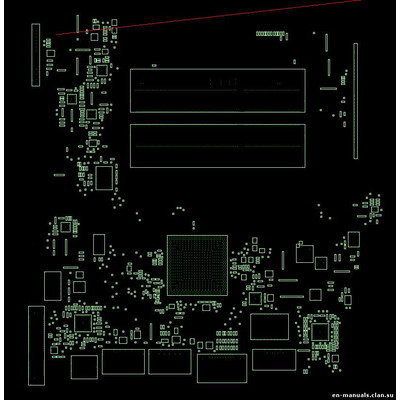

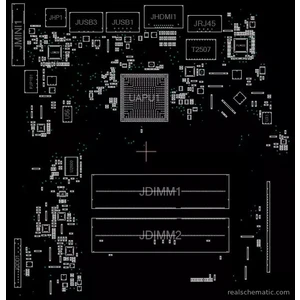

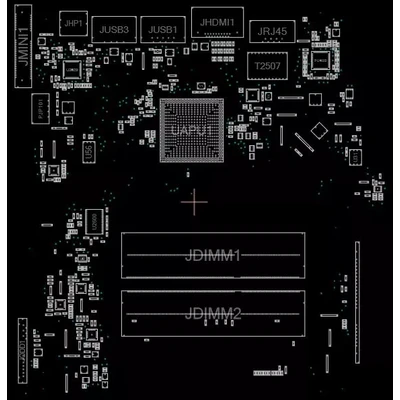

+ BoardView Rev: 1.0
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
