Dell Vostro 14 3446, Vostro 15 3546
SKU: 05252
Schematic diagrams for Laptops Dell Vostro 3446 / 3546 Project: Wistron ' Janus HSW '
- Manufacturer: Wistron
- SKU: 05252
- Unit: pcs
- Size: 2.26Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

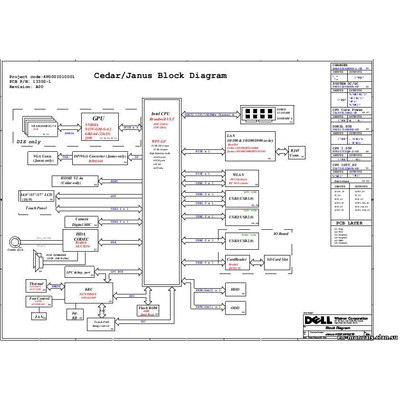

Schematic diagrams for Laptops Dell Vostro 14 3446 / Dell Vostro 15 3546
Project: Wistron ' Janus HSW ' Rev: 1.0 (A00)
Schematic diagrams for PCB marked Janus_Intel -MB 13302-1
Format: PDF
Total pages: 104

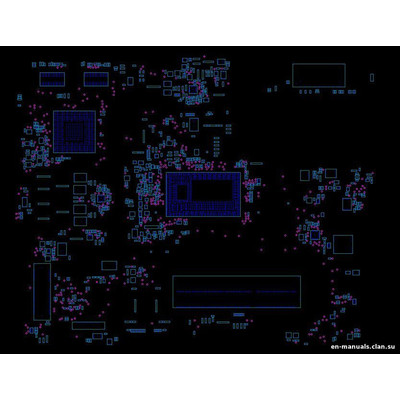

+ BoardView Rev: 1.0 (A00)
The program for viewing is attached.
