Schematic diagrams for Laptops HP Pavilion dv6 series Project: Quanta UT3J
- Manufacturer: Quanta
- SKU: 08296
- Unit: pcs
- Size: 2.23Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

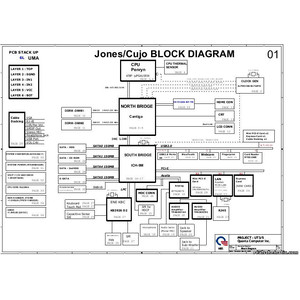

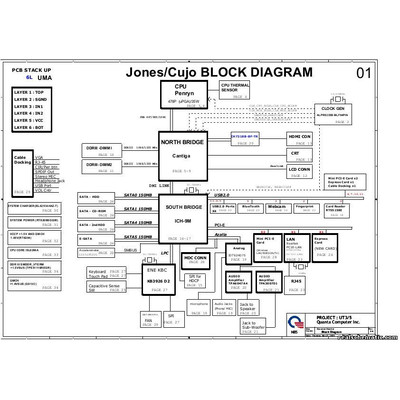

Schematic diagrams for Laptops HP Pavilion dv6 series
Project: Quanta UT3J UMA
Schematic diagrams for PCB with markings UT35UMADDR3, DAUT3JMB6C0, DAUT3JMB6C1 and similar
Format: PDF
Total pages: 35

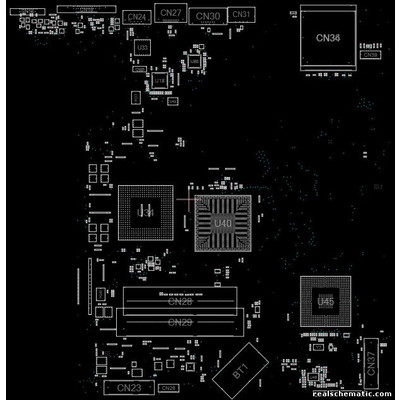

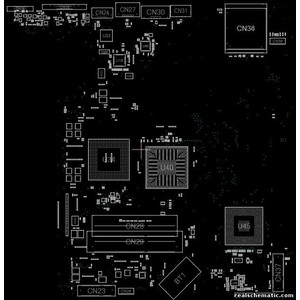

+ BoardView
The program for viewing is attached.
