ASUS N53SV N53SM

5.0/3
3 reviews
SKU: 03315
BoardView and Repair Guide for Laptops ASUS N53SV / N53SM Project: ASUS N53SV
  • Manufacturer: ASUS
  • CPU: Intel Socket 989
  • VGA: Nvidia N12P
  • RAM: DDR3
  • SKU: 03315
  • Unit: pcs
  • Size: 656.3Kb
  • Availability: In stock
  • Tags: N53SM, ASUS, N53SV
4.50eur

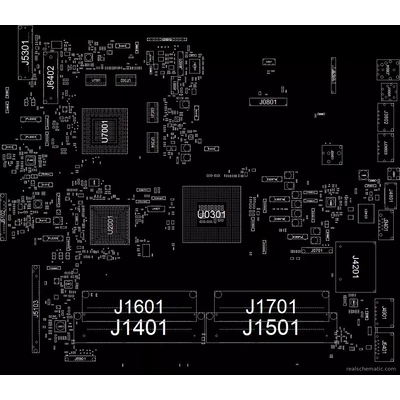

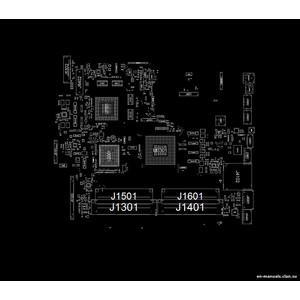

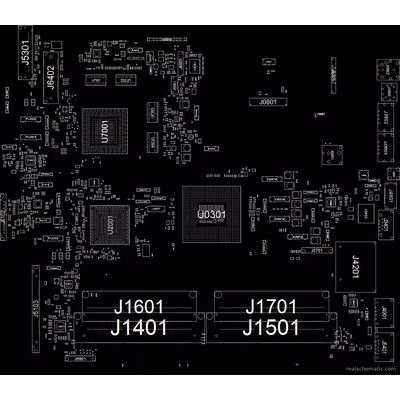

BoardView for Laptops ASUS N53SV / ASUS N53SM

Project: ASUS N53SV   Rev: 2.0, 2.1, 2.2

BoardView for motherboard marked N53SV MAIN BOARD

Two sides. Three revisions.

Format: FZ   ( shows the values / labeling of the components )

Shows positional designations, electrical circuits between components, and other details.

The program for viewing is attached.

+ Short Repair Guide



BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
