ASUS ROG G75VW
SKU: 03322
BoardView for Laptop ASUS ROG G75VW
- Manufacturer: ASUS
- CPU: Intel Socket 989
- GPU: MXM Module
- RAM: DDR3
- SKU: 03322
- Unit: pcs
- Size: 1.45Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

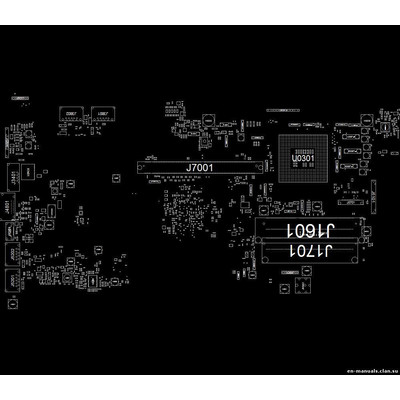

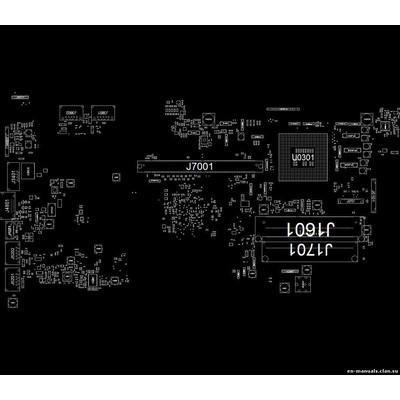

BoardView for Laptop ASUS ROG G75VW
Project: ASUS G75VW Rev: 2.0, 2.1, 2.4
BoardView for motherboard marked G75VW MAIN BOARD
Two sides. Three revisions.
Format: FZ ( shows the values / labeling of the components )
Shows positional designations, electrical circuits between components, and other details.
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
