Toshiba Qosmio DX730 / Qosmio DX735
SKU: 06220
Schematic diagrams for All-in-One PC Toshiba Qosmio DX730 / DX735 Project: Inventec ' McKinley 10F/10FG '
- Manufacturer: Inventec
- SKU: 06220
- Unit: pcs
- Size: 1.55Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

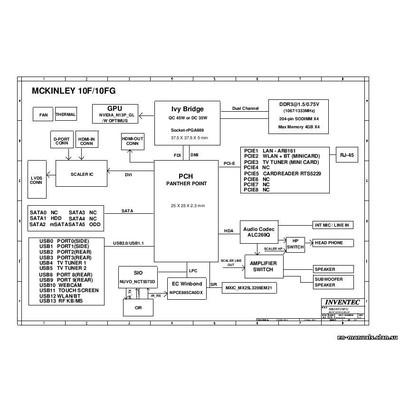

Schematic diagrams for All-in-One PCs Toshiba Qosmio DX730 / Toshiba Qosmio DX735
Project: Inventec ' McKinley 10F/10FG '
Schematic diagrams for PCB with marking 6050A2495801
Format: PDF
Total pages: 81

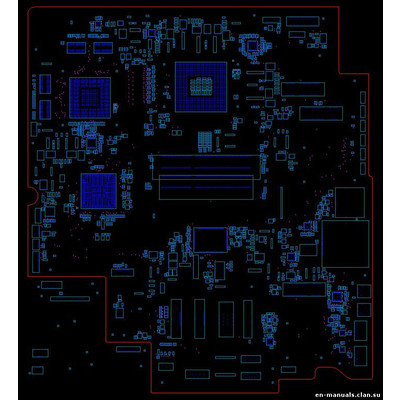

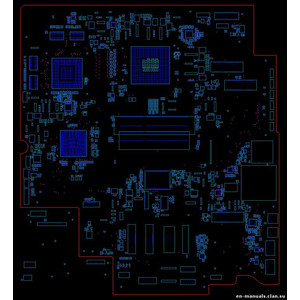

+ BoardView
The program for viewing is attached.
