Apple iMac 27'' A1419 PCB: 820-3478
SKU: 17069
Schematic diagrams for All-in-One PC Apple iMac 27'' A1419 Project: J17
- Manufacturer: Apple
- CPU: Intel Socket 1150
- GPU: Nvidia N14P
- RAM: DDR3
- SKU: 17069
- Unit: pcs
- Size: 1.91Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for All-in-One PC Apple iMac 27'' A1419
Project: J17

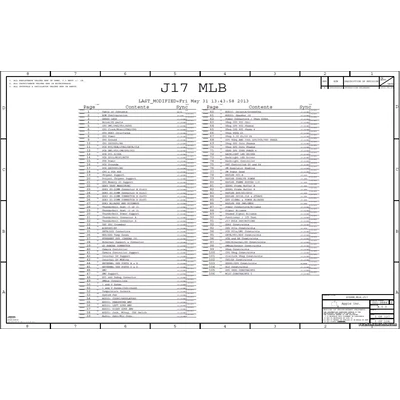

Schematic diagrams for motherboard marked 820-3478-A
Format: PDF
Total pages: 106

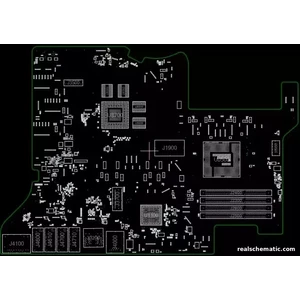

+ BoardView Rev: A
Format: BRD
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
