Schematic diagrams for Laptop Apple MacBook 12'' Retina A1534 Project: J92
- Manufacturer: Apple
- CPU: Intel Broadwell
- VGA: UMA
- RAM: LPDDR3
- SKU: 17073
- Unit: pcs
- Size: 1.27Mb
- Availability: In stock
- Tags:
4.50eur
Schematic diagrams for Laptop Apple MacBook 12'' Retina A1534
Project: J92

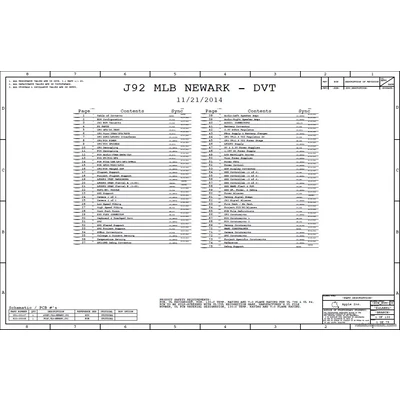

Schematic diagrams for motherboard marked 820-00045-A and similar
Format: PDF
Total pages: 75

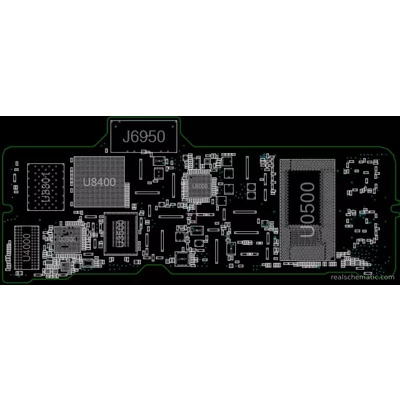

+ BoardView
Format: BRD
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
