Lenovo IdeaPad Flex 14 Flex 15 PCB: ST6
SKU: 12273
Schematic diagrams for Laptops Lenovo IdeaPad Flex 14 / Flex 15 Project: Quanta ST6
- Manufacturer: Quanta
- CPU: Intel Haswell
- GPU: Nvidia N15V / UMA
- RAM: DDR3L
- SKU: 12273
- Unit: pcs
- Size: 1.42Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptops Lenovo IdeaPad Flex 14 / Lenovo IdeaPad Flex 15
Project: Quanta ST6 / ST6A

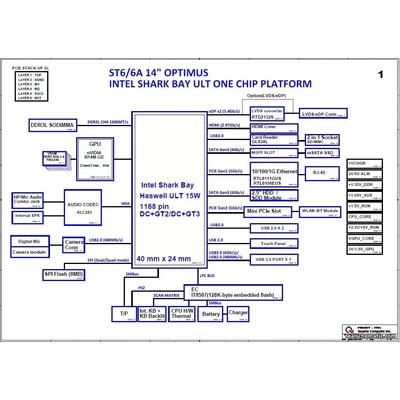

Schematic diagrams for motherboards marked DA0ST6MB6E0 REV:E or DA0ST6MB6F0 REV:F or DAST6MB16A0 REV:A
Format: PDF
Total pages: 46

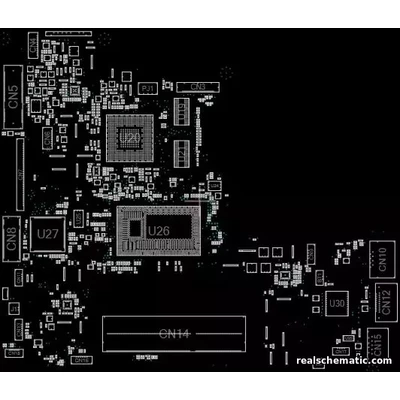

+ BoardView Rev: E
Format: BRD
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
