ASUS K43L, K84C, K84L, X44C, X44H, X44L

5.0/1
Compare
SKU: 03366
ASUS K43L / K84C / K84L / X44C / X44H / X44L BoardView + Repair Guide
4.50eur
3.75eur

BoardView

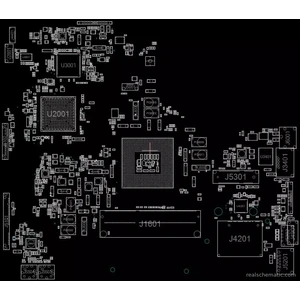

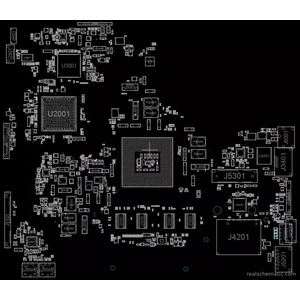

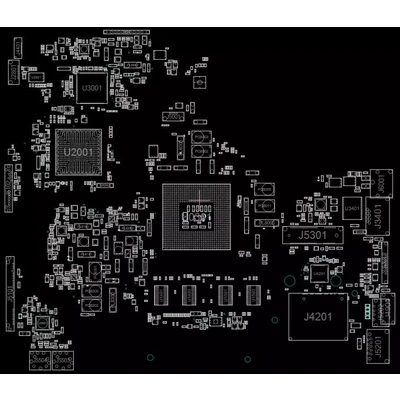

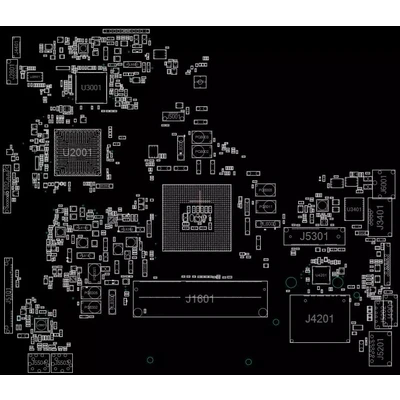

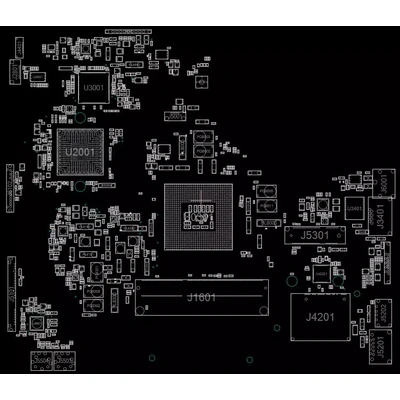

Project: ASUS K43L   Rev: 2.0, 3.1, 4.1, 5.0

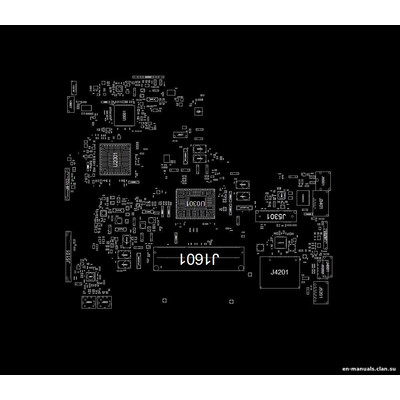

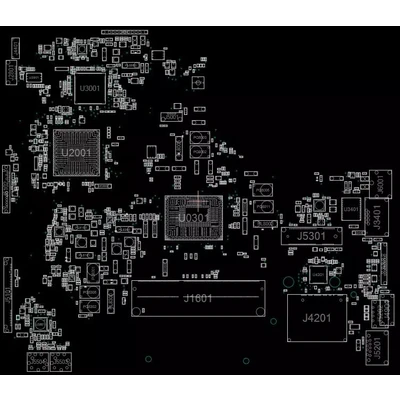

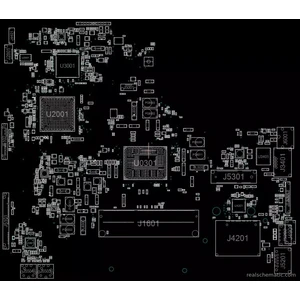

BoardView for PCB marked K43L MAIN BOARD

Two sides. Four revisions.

Shows the positional designation, labeling and other details.

The program for viewing is attached.

+ Short Repair Guide
