ASUS P55VA / ASUS Q500A
SKU: 03367
ASUS P55VA / ASUS Q500A BoardView
- Manufacturer: ASUS
- SKU: 03367
- Unit: pcs
- Size: 1.11Mb
- Availability: In stock
- Tags:
2.50eur
BoardView
Project: ASUS Q500A Rev: 2.1

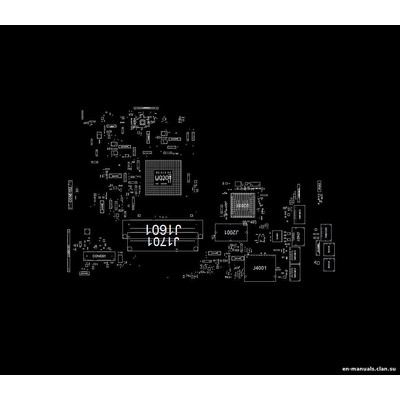

BoardView for PCB marked Q500A MAIN BOARD
Two sides.
Shows the positional designation, labeling and other details.
The program for viewing is attached.
