Lenovo IdeaPad Y700-15ISK Y700-17ISK PCB: NM-A541
SKU: 12284
Schematic diagrams for Laptops Lenovo IdeaPad Y700-15ISK / Y700-17ISK Project: NM-A541
- Manufacturer: Lenovo
- SKU: 12284
- Unit: pcs
- Size: 6.36Mb
- Availability: In stock
- Tags:
5.25eur
4.50eur
Schematic diagrams for Laptops Lenovo IdeaPad Y700-15ISK / Lenovo IdeaPad Y700-17ISK
Project: NM-A541 Rev: 1.0

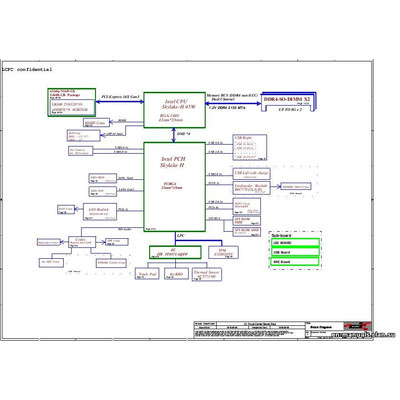

Schematic diagrams for motherboard marked BY511 NM-A541
+ sub-board schematic diagrams NS-A543
Format: PDF
Total pages: 70

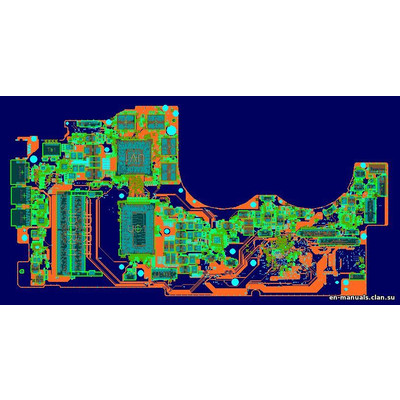

+ BoardView ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
