Dell Studio XPS 1340 PCB: IM5B
SKU: 05077

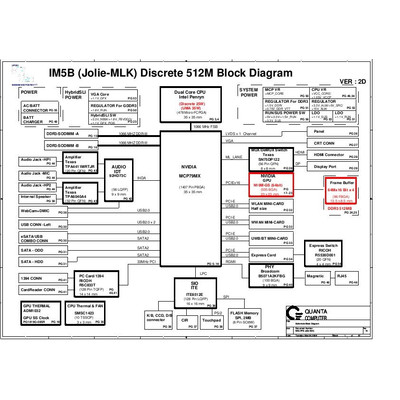

Schematic diagrams for Laptop Dell Studio XPS 1340 Project: Quanta IM5B
- Manufacturer: Quanta
- SKU: 05077
- Unit: pcs
- Size: 1.22Mb
- Availability: In stock
- Tags:
2.50eur
Schematic diagrams for Laptop Dell Studio XPS 1340
Project: Quanta IM5B
Schematic diagrams for motherboard marked DAIM5BMBAF0 REV:F
Format: PDF
Total pages: 57

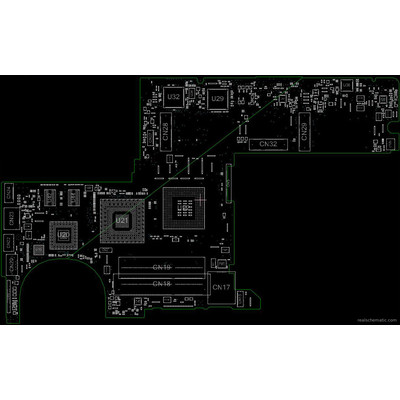

BoardView available in BRD format Rev: F ( not included in the price, price on request ).
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
