Toshiba Satellite L850 series
SKU: 06227
BoardView for Laptops Toshiba Satellite L850 series Project: Pegatron ' PLF/CSF 45W '
- Manufacturer: Pegatron
- CPU: Intel Socket 988
- GPU: AMD Thames / UMA
- RAM: DDR3
- SKU: 06227
- Unit: pcs
- Size: 156.9Kb
- Availability: In stock
- Tags:
5.25eur
4.50eur
BoardView for Laptops Toshiba Satellite L850 series
Project: Pegatron ' PLF/CSF 45W '

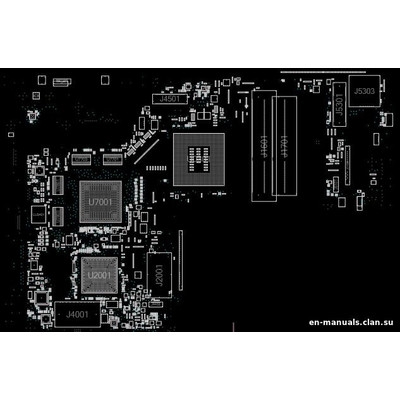

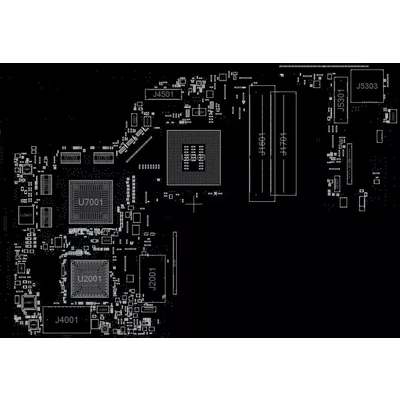

BoardView for motherboard marked PLF/CSF 45W UMA & DSC MB REV:2.1
Two sides.
Shows positional designations, electrical circuits between components, and other details.
The program for viewing is attached.
+ BoardView for Sub-board
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
