HP ProBook 450 G3 470 G3 series PCB: X63
SKU: 08332

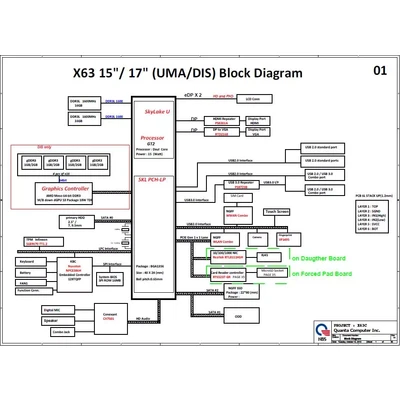

Schematic diagrams for Laptops HP ProBook 450 G3 / 470 G3 Project: Quanta X63
- Manufacturer: Quanta
- CPU: Intel Skylake
- GPU: AMD Meso / UMA
- RAM: DDR4
- SKU: 08332
- Unit: pcs
- Size: 2.48Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptops HP ProBook 450 G3 / HP ProBook 470 G3
Project: Quanta X63
Schematic diagrams for motherboard marked DA0X63MB6H1 REV:H
Format: PDF
Total pages: 65

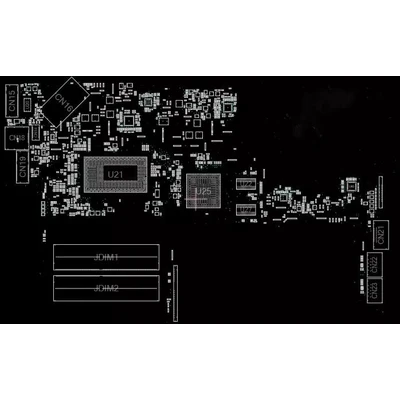

+ BoardView Rev: H
The program for viewing is attached.
+ BoardView for Sub-boards
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
