HP Pavilion 15-f series / HP Pavilion 15-n series
SKU: 08348
Schematic diagrams for Laptops HP Pavilion 15-f / Pavilion 15-n Project: Quanta U93
- Manufacturer: Quanta
- SKU: 08348
- Unit: pcs
- Size: 1.71Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

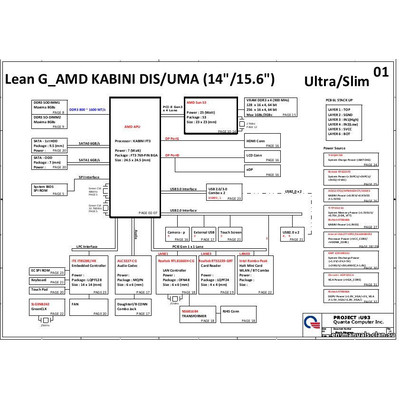

Schematic diagrams for Laptops HP Pavilion 15-f series / HP Pavilion 15-n series
Project: Quanta U93
Schematic diagrams for PCB with markings DA0U93MB6D0, DA0U93MB6D2 and similar
Format: PDF
Total pages: 32

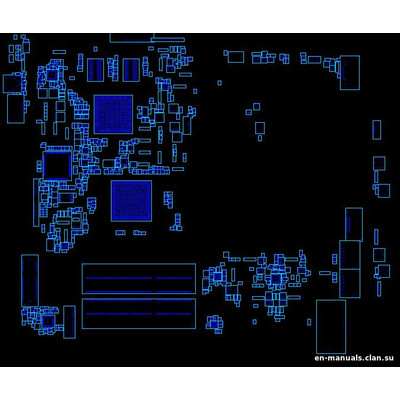

+ BoardView Rev: D
The program for viewing is attached.
