Acer Aspire Z3-715 AiO, Aspire U5-710 AiO
SKU: 00468
Schematic diagrams for All-in-One PCs Acer Aspire Z3-715, Aspire U5-710 Project: Wistron ' Scotland '
- Manufacturer: Wistron
- SKU: 00468
- Unit: pcs
- Size: 24.16Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for All-in-One PCs Acer Aspire Z3-715 / Acer Aspire U5-710
Project: Wistron ' Scotland '

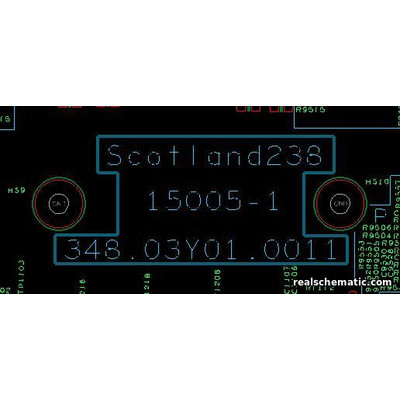

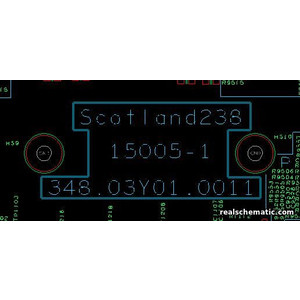

Schematic diagrams for PCB marked Scotland238 15005-1
Format: PDF
Total pages: 107

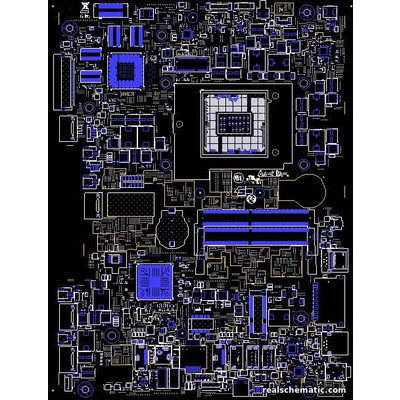

+ BoardView Rev: -1 (multilayer, with full factory markings of names and parameters of electronic components)
The program for viewing is attached.
