HP Pavilion 20-c, Pavilion 22-b, Pavilion 24-g
SKU: 08366
Schematic diagrams for All-in-One PCs HP Pavilion 20-c, Pavilion 22-b, Pavilion 24-g Project: N91A
- Manufacturer: Quanta
- SKU: 08366
- Unit: pcs
- Size: 2.23Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

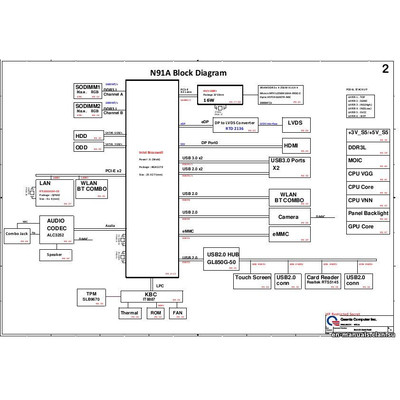

Schematic diagrams for HP Pavilion 20-c series AiO / Pavilion 22-b series AiO / Pavilion 24-g series AiO
Project: Quanta N91A
Schematic diagram for PCB with marking DAN91AMB6D0 and similar
Format: PDF
Total pages: 54

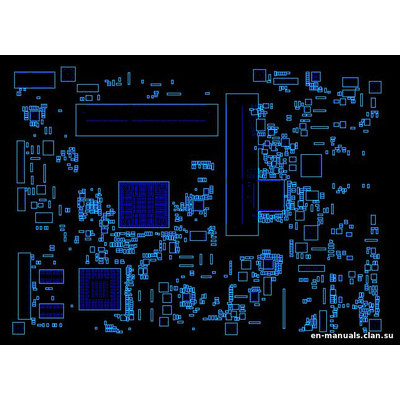

+ BoardView
The program for viewing is attached.
