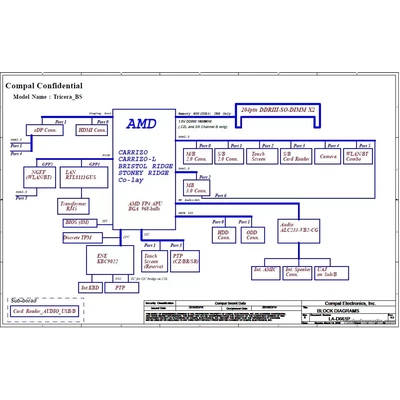

Schematic diagrams for Laptops Acer Aspire ES1-523 / Aspire ES1-524 Project: LA-D661P
- Manufacturer: Compal
- CPU: AMD Carrizo / Stoney Ridge
- VGA: UMA
- RAM: DDR3
- SKU: 00475
- Unit: pcs
- Size: 1.04Mb
- Availability: In stock
- Tags:
4.50eur
Schematic diagrams for Laptops Acer Aspire ES1-523 / Acer Aspire ES1-524
Project: Compal LA-D661P

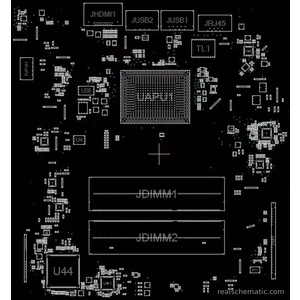

Schematic diagrams for motherboard marked C5W1R LA-D661P
Format: PDF
Total pages: 35
+ BoardView
The program for viewing is attached.

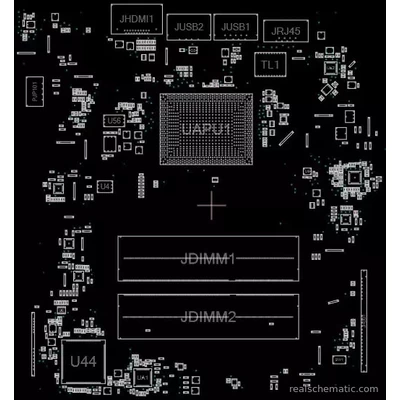

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
Similar products

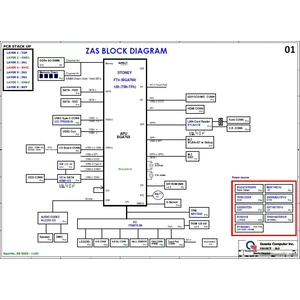

Acer Aspire 3 A315-21 series PCB: ZAS
