Schematic diagrams for Laptops Acer Aspire A315-53G, A515-51G, A517-51G, AN515-31 Project: LA-E892P
- Manufacturer: Compal
- SKU: 00476
- Unit: pcs
- Size: 5.57Mb
- Availability: In stock
- Tags:
5.25eur
4.50eur

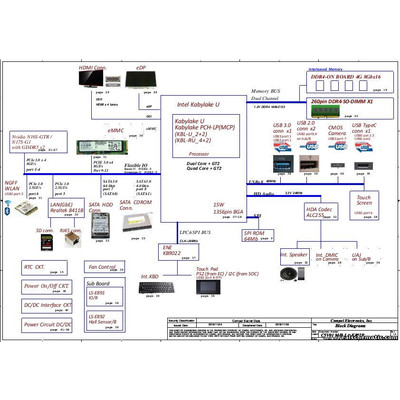

Schematic diagrams for Laptops Acer Aspire A315-53G / Aspire A515-51G / Aspire A517-51G / Aspire Nitro AN515-31
Project: Compal LA-E892P Rev: 1A, 2A
Schematic diagrams for motherboard marked C5V01 LA-E892P
Format: PDF
Total pages: 57 + 57 ( two revision )
+ Sub-boards schematic diagrams

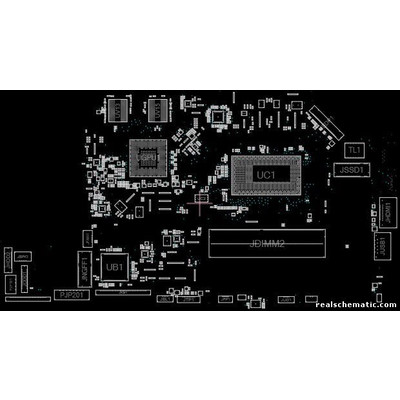

+ BoardView Rev: 1A
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
