Acer Aspire 5745 5820 5820T (UMA)
SKU: 00477

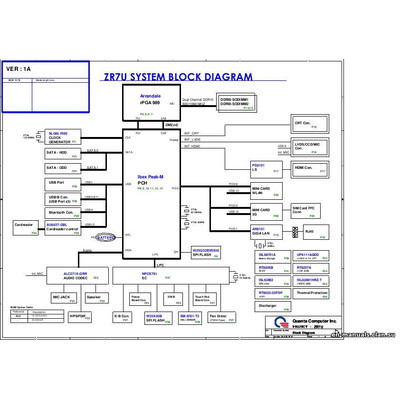

Schematic diagrams for Laptop Acer Aspire 5745, 5820, 5820T Project: Quanta ZR7U
- Manufacturer: Quanta
- SKU: 00477
- Unit: pcs
- Size: 1.48Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptops Acer Aspire 5745 / Acer Aspire 5820 / Acer Aspire 5820T (UMA)
Project: Quanta ZR7U
Schematic diagrams for PCB with marking DAZR7MB16C0 and similar
Format: PDF
Total pages: 38

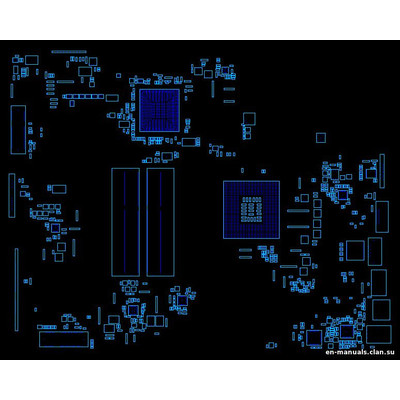

+ BoardView
The program for viewing is attached.
