HP Pavilion 15-p, Pavilion 17-f series (PCB: Y23A)
SKU: 08377
Schematic diagrams for Laptops HP Pavilion 15-p / Pavilion 17-f Project: Quanta Y23A
- Manufacturer: Quanta
- SKU: 08377
- Unit: pcs
- Size: 1.82Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

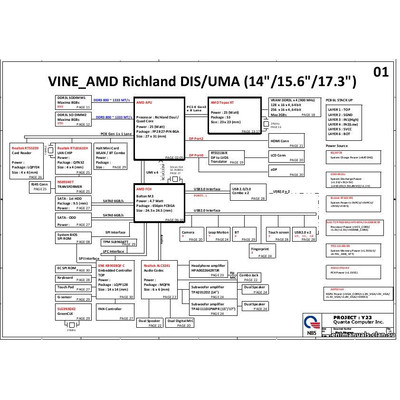

Schematic diagrams for Laptops HP Pavilion 15-p series / Pavilion 17-f series
Project: Quanta Y23A
Schematic diagrams for PCB with markings DAY23AMB6C0, DAY23AMB6F0 and similar
Format: PDF
Total pages: 41

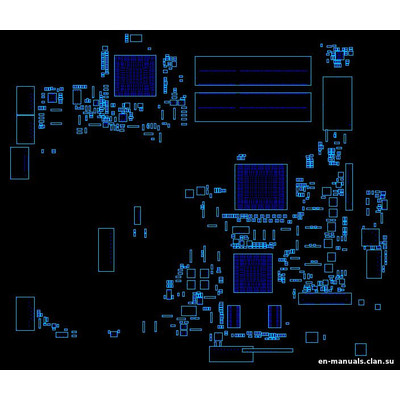

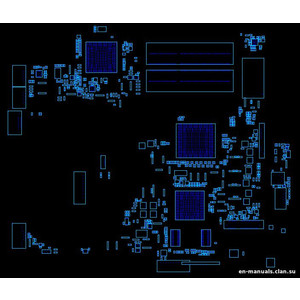

+ BoardView
The program for viewing is attached.
