Schematic diagrams for Laptops Toshiba Satellite L50, L50-A, L55, P50t, P50t-A, S55 Project: VGS
- Manufacturer: Pegatron
- SKU: 06234
- Unit: pcs
- Size: 2.92Mb
- Availability: In stock
- Tags:
4.50eur
Schematic diagrams for Laptops Toshiba Satellite L50 / Satellite L50-A / Satellite L55 / Satellite P50t / Satellite P50t-A / Satellite S55
Project: Pegatron ' VGS '

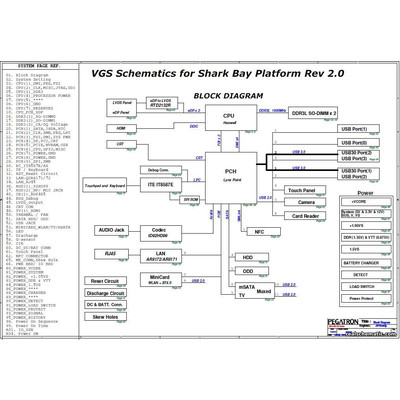

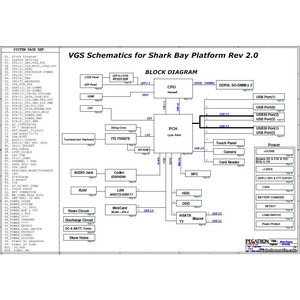

Schematic diagrams for PCB marked VGS MB Rev:2.1
Format: PDF
Total pages: 65

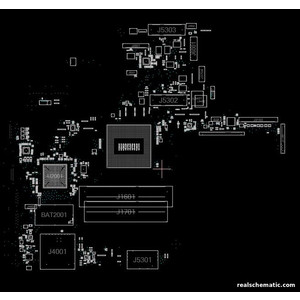

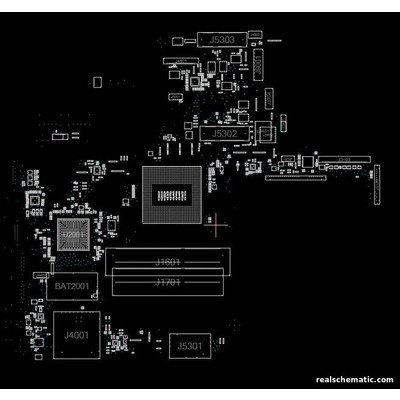

+ BoardView Rev: 2.1
The program for viewing is attached.
