Dell Inspiron 14 3458, Inspiron 15 3558
SKU: 05285
Schematic diagrams for Laptops Dell Inspiron 14 3458 / Inspiron 15 3558 Project: Wistron Iris-2
- Manufacturer: Wistron
- SKU: 05285
- Unit: pcs
- Size: 11.91Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

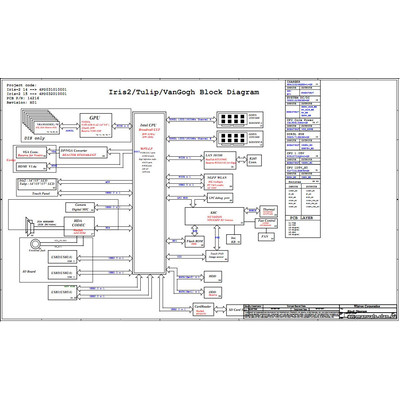

Schematic diagrams for Laptops Dell Inspiron 14 3458 / Del Inspiron 15 3558
Project: Wistron ' Iris-2 ' Rev: A00

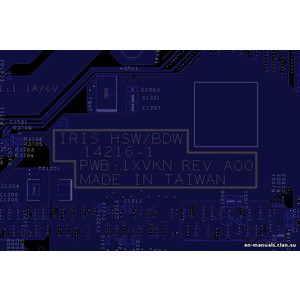

Schematic diagrams for PCB marked IRIS HSW/BDW 14216-1
Format: PDF
Total pages: 102

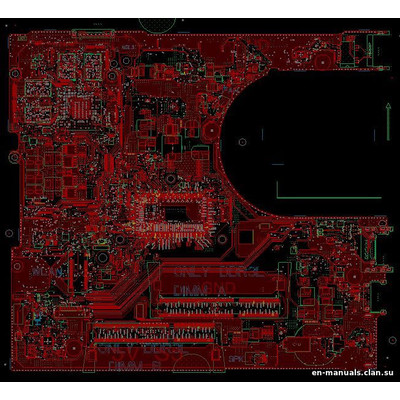

+ BoardView Rev: A00
The program for viewing is attached.
