Samsung NP500R5H / NP500R5K BoardView Project: Samsung ' ATLAS-15HD '
  • Manufacturer: Samsung
  • CPU: Intel Haswell / Broadwell
  • VGA: Nvidia N16S / N16V
  • RAM: DDR3
  • SKU: 07078
  • Unit: pcs
  • Size: 267.9Kb
  • Availability: In stock
  • Tags: NP500R5K, Atlas, NP500R5H, Samsung
4.50eur

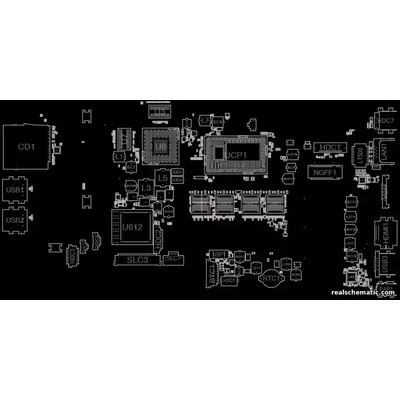

BoardView for Laptops Samsung NP500R5H / Samsung NP500R5K

Project: Samsung ' ATLAS-15HD '   Rev: 1.0

BoardView for PCB marked BA41-02448A

Two sides.

Format: CAD full   ( with values / labeling of the components )

Shows positional designations, electrical circuits between components, and other details.

The program for viewing is attached.
