BoardView for All-in-One PCs ASUS Vivo AiO V220IC / V220IC-UK series Project: V220IC
- Manufacturer: ASUS
- CPU: Intel Skylake
- GPU: Nvidia N16S / N16V / UMA
- RAM: DDR4
- SKU: 03421
- Unit: pcs
- Size: 108.5Kb
- Availability: In stock
- Tags:
2.50eur
BoardView for All-in-One PCs ASUS Vivo AiO V220IC / ASUS Vivo AiO V220IC-UK series
Project: ASUS V220IC Rev: 1.02

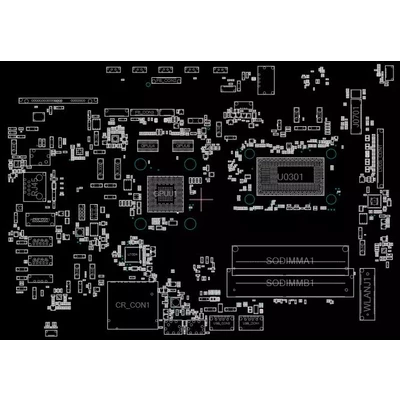

BoardView for motherboard marked V220IC MAIN BOARD REV. 1.02
Two sides.
Format: FZ ( shows the values / labeling of the components )
Shows positional designations, electrical circuits between components, and other details.
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
Similar products
ASUS Vivo AiO V230IC series

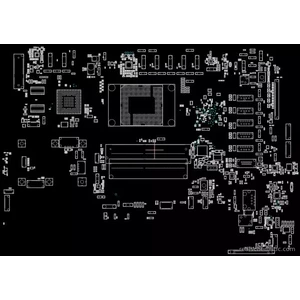

BoardView for All-in-One PCs ASUS Vivo AiO V230IC series Project: ASUS V230IC
