Lenovo IdeaPad 100-14IBY, 100-15IBY, B50-10

Name: Lenovo IdeaPad 100-14IBY, 100-15IBY, B50-10
Brand: Compal
SKU: 12323
Price: 4.50 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

Rating: 5.0/1

4.50eur

Manufacturer: Compal
SKU: 12323
Unit: pcs
Size: 6.83Mb
Availability: In Stock

100-15IBY, Lenovo, 100-14IBY, pdf, boardview, IdeaPad, compal, B50-10, LA-C771P

Description
Images

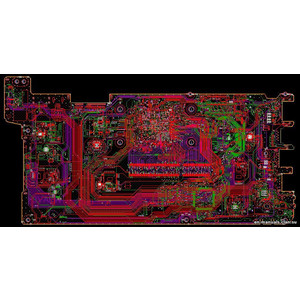

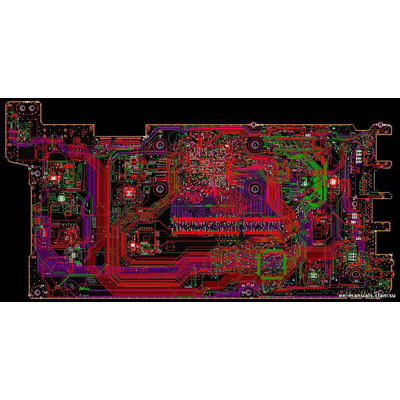

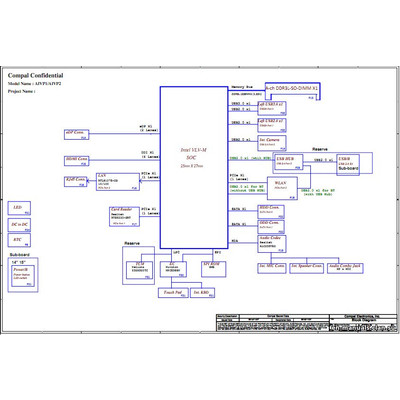

Schematic diagrams for Laptops Lenovo B50-10 / Lenovo IdeaPad 100-14IBY / Lenovo IdeaPad 100-15IBY

Project: Compal LA-C771P

Schematic diagrams for PCB marked AIVP1/AIVP2 LA-C771P

Format: PDF

Total pages: 34

+ BoardView

The program for viewing is attached.

Added by: Dr-laptop, Tuesday, 25.12.2018
