Acer Aspire Z1-611 / Packard Bell oneTwo S3380
SKU: 00507

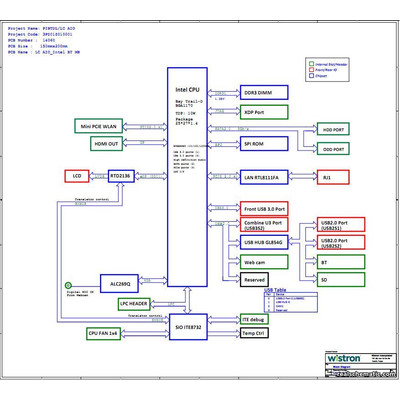

Schematic diagrams for All-in-One PC's Acer Aspire Z1-611 / Packard Bell oneTwo S3380
- Manufacturer: Wistron
- SKU: 00507
- Unit: pcs
- Size: 7.46Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for All-in-One PC's Acer Aspire Z1-611 19.5'' / Packard Bell oneTwo S3380 19.5''
Project: Wistron ' LC AIO_Intel BT '
Schematic diagrams for PCB marked LC AIO_Intel BT MB 14060-1
Format: PDF
Total pages: 61

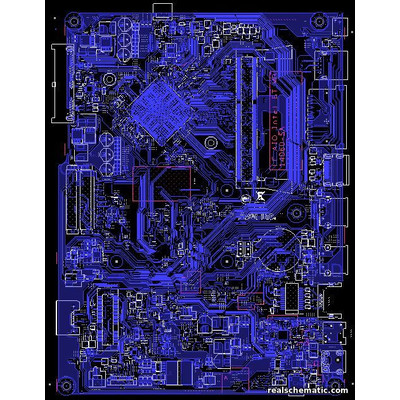

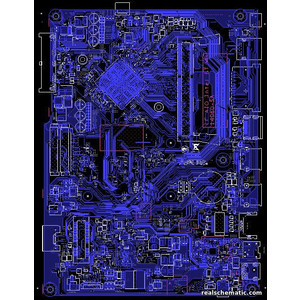

+ BoardView (multilayer, with full factory markings of names and parameters of electronic components)
The program for viewing is attached.
