Lenovo IdeaPad 310-15ISK 510-15ISK PCB: NM-A752

Name: Lenovo IdeaPad 310-15ISK 510-15ISK PCB: NM-A752
Brand: Lenovo
SKU: 12332
Price: 4.50 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

Rating: 5.0/1

4.50eur

Manufacturer: Lenovo
SKU: 12332
Unit: pcs
Size: 4.00Mb
Availability: In Stock

Lenovo, 510-15ISK, 310-15ISK, IdeaPad

Description
Images

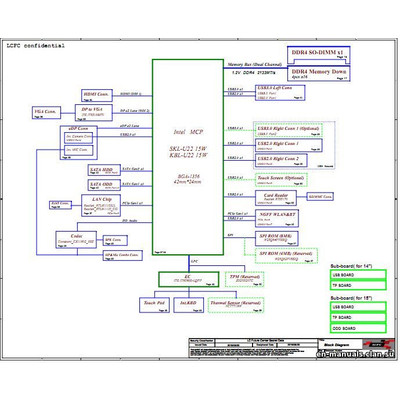

Schematic diagrams for Laptops Lenovo IdeaPad 310-15ISK / Lenovo IdeaPad 510-15ISK

Project: NM-A752 Rev: 1.0

Schematic diagrams for PCB marked CG411&CG511&CZ411&CZ511 NM-A752

Format: PDF

Total pages: 60

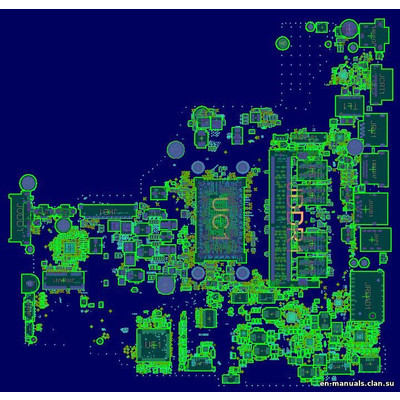

+ BoardView

The program for viewing is attached.

Added by: Dr-laptop, Friday, 15.03.2019
