Lenovo ThinkPad T470s PCB: NM-B081
SKU: 12335
Schematic diagrams for Laptop Lenovo ThinkPad T470s Project: NM-B081
- Manufacturer: Lenovo
- CPU: Intel Skylake / Kaby Lake
- GPU: UMA
- RAM: DDR4
- SKU: 12335
- Unit: pcs
- Size: 6.04Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptop Lenovo ThinkPad T470s
Project: NM-B081
Schematic diagrams for motherboard marked DT471 NM-B081
Format: PDF
Total pages: 103

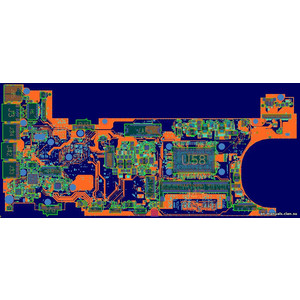

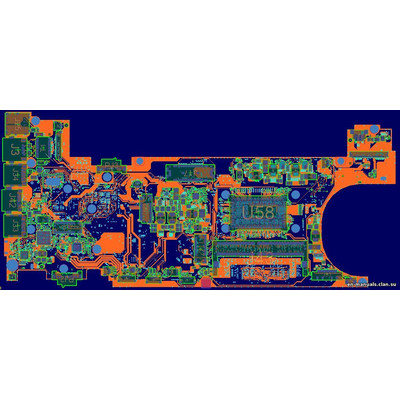

+ BoardView Rev: 1.0 ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
