Schematic diagrams for Laptop Dell Precision 15 7510 Project: Compal LA-C541P
- Manufacturer: Compal
- SKU: 05292
- Unit: pcs
- Size: 9.72Mb
- Availability: In stock
- Tags:
4.50eur

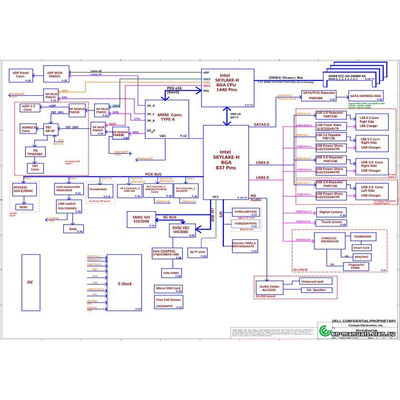

Schematic diagrams for Laptop Dell Precision 15 7510
Project: Compal LA-C541P Rev: 1.0 (A00)
Schematic diagrams for PCB marked AAPA0 LA-C541P
Format: PDF
Total pages: 74

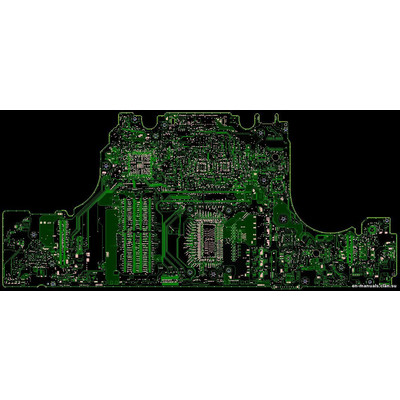

+ BoardView Rev: 1.0 (A00)
The program for viewing is attached.
