Acer Aspire ES1-572 / Acer Extensa EX2540
SKU: 00511
Schematic diagrams for Laptops Acer Aspire ES1-572 / Extensa EX2540 Project: LA-D671P
- Manufacturer: Compal
- SKU: 00511
- Unit: pcs
- Size: 2.44Mb
- Availability: In stock
- Tags:
5.25eur
4.50eur

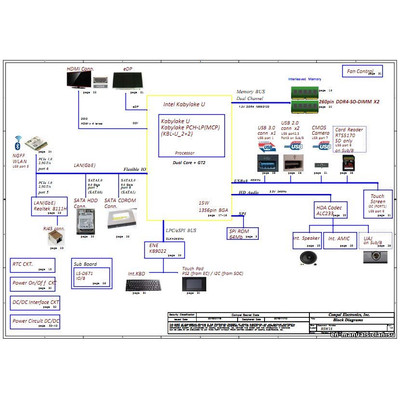

Schematic diagrams for Laptops Acer Aspire ES1-572 / Acer Extensa EX2540
Project: Compal LA-D671P Rev: 1.0
Schematic diagrams for PCB marked B5W1S LA-D671P
Format: PDF
Total pages: 47
+ Sub-board LS-D671P schematic diagrams

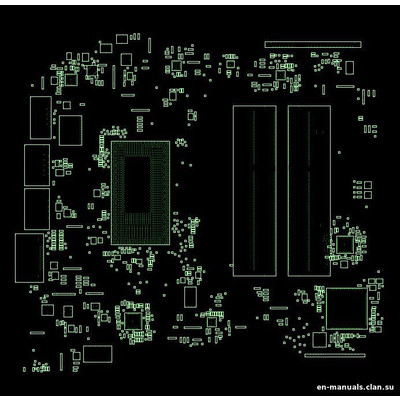

+ BoardView for LS-D671P Rev: 1.0

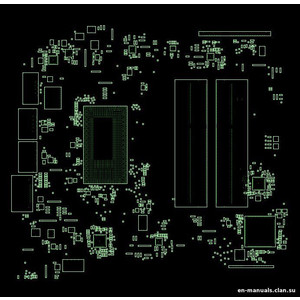

+ BoardView for LA-D671P Rev: 1.0
The program for viewing is attached.
