Lenovo ThinkPad E480 E580
|

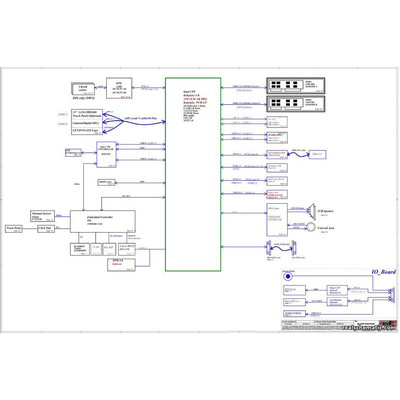

Schematic diagrams for Laptops Lenovo ThinkPad E480 / Lenovo ThinkPad E580
Project: NM-B421 Rev: 1.0
Schematic diagrams for PCB marked EE480/EE580 NM-B421
Format: PDF

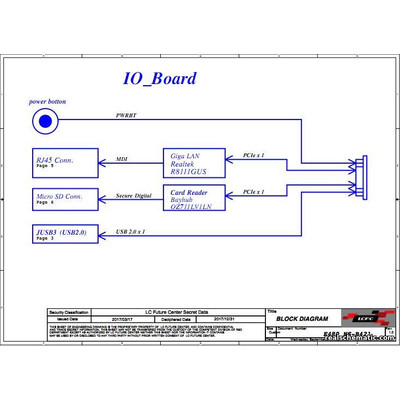

+ Sub-board NS-B421 schematic diagrams
Total pages: 106

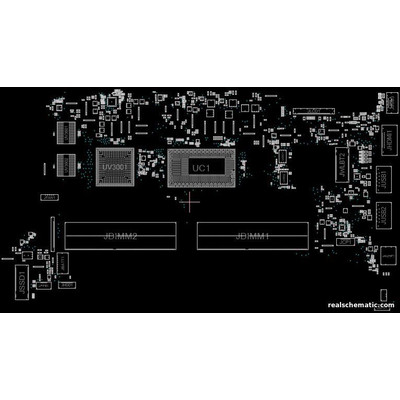

+ BoardView Rev: 1.0
The program for viewing is attached.
