Schematic diagrams for Laptops Packard Bell EasyNote TM85 / TM86 / TM87 / TM89 / TK85 / TK87
- Manufacturer: Compal
- CPU: Intel Socket 988
- GPU: Nvidia N11P / N12P
- RAM: DDR3
- SKU: 15007
- Unit: pcs
- Size: 1.38Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptops Packard Bell EasyNote TM85 / TM86 / TM87 / TM89 / TK85 / TK87 series
Project: Compal LA-5893P Rev: 1.0

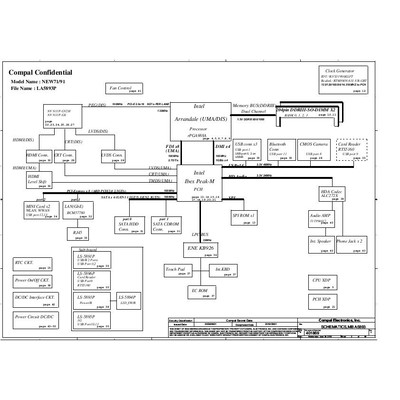

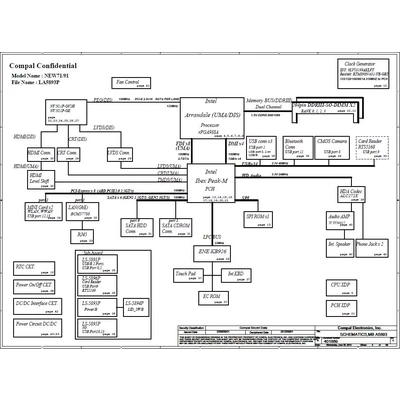

Schematic diagrams for motherboard marked NEW71 LA-5893P
Format: PDF
Total pages: 56
+BoardView Rev: 1.0
The program for viewing is attached.
+ Sub-boards schematic diagrams

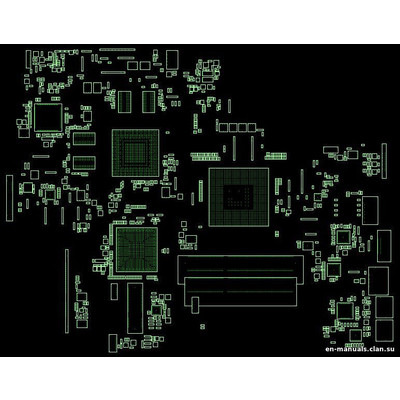

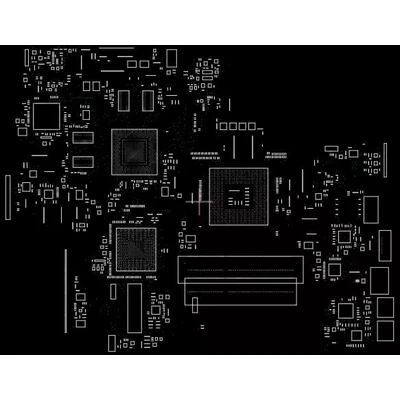

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
