HP Pavilion dm4, Pavilion dv3 series

Rating: 5.0/2

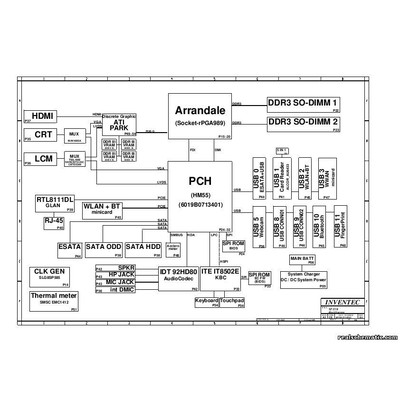

Schematic diagrams for Laptops HP Pavilion dm4 series / Pavilion dv3 series

Project: Inventec ST133i

Schematic diagrams for PCB with markings 6050A2314301, 6050A2371701

Format: PDF

Total pages: 56

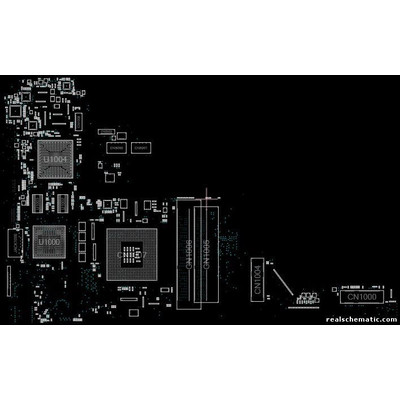

+ BoardView   Rev: 6050A2314301-MB-A04

The program for viewing is attached.

Added to the catalog: Sunday, 18.09.2011
