Lenovo V310-15IKB, V510-15IKB, V310-15ISK, V510-15ISK

Name: Lenovo V310-15IKB, V510-15IKB, V310-15ISK, V510-15ISK
Brand: Quanta
SKU: 12364
Price: 3.75 EUR
Availability: InStock
Rating: 5.0 (2 reviews)

5.0/2

SKU: 12364

Schematic diagrams for Laptops Lenovo V310-15IKB, V510-15IKB, V310-15ISK, V510-15ISK Project: LV6

Manufacturer: Quanta
SKU: 12364
Unit: pcs
Size: 1.57Mb
Availability: In stock
Tags: Lenovo, quanta, V310-15ISK, LV6, PDF, V510-15ISK, V310-15IKB, V510-15IKB

4.50eur

3.75eur

Description
Images

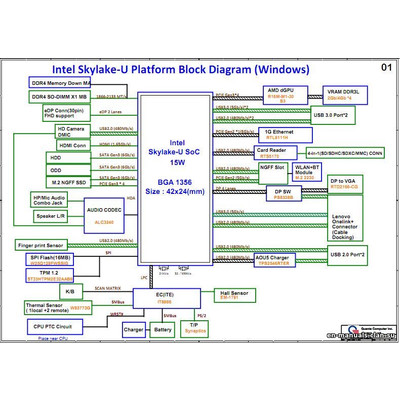

Schematic diagrams for Laptops Lenovo V310-15IKB / Lenovo V510-15IKB / Lenovo V310-15ISK / Lenovo V510-15ISK

Project: Quanta LV6

Schematic diagrams for PCB with marking DA0LV6MB6F0 and similar

Format: PDF

Total pages: 61

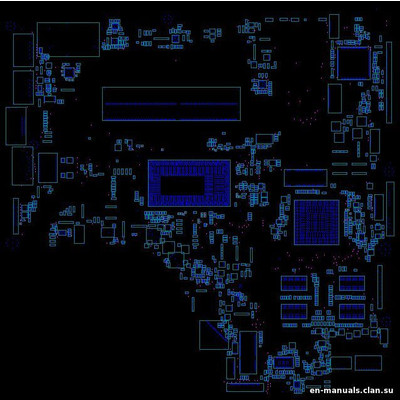

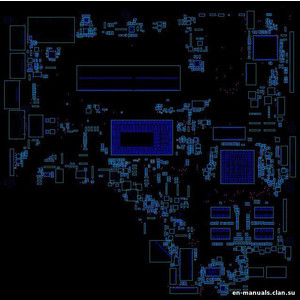

+ BoardView

The program for viewing is attached.
