Lenovo IdeaPad 310-15IKB
SKU: 12372
Schematic diagrams for Laptop Lenovo IdeaPad 310-15IKB Project: NM-A982
- Manufacturer: Lenovo
- SKU: 12372
- Unit: pcs
- Size: 5.39Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

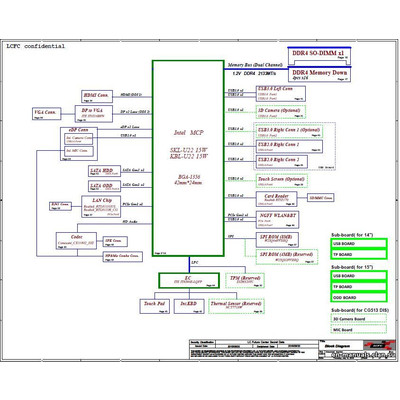

Schematic diagrams for Laptop Lenovo IdeaPad 310-15IKB
Project: NM-A982 Rev: 1.0
Schematic diagrams for PCB marked CG413&CG513&CZ513 NM-A982
Format: PDF
Total pages: 60

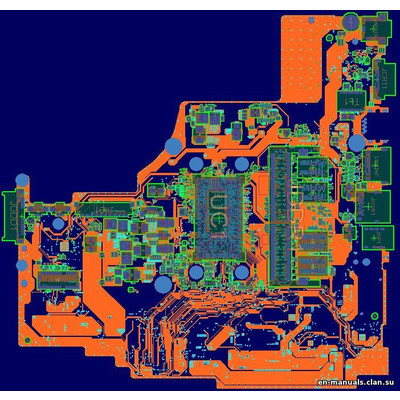

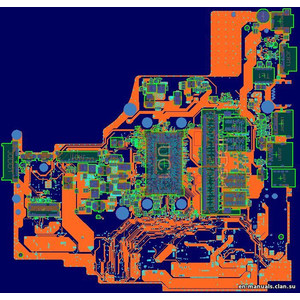

+ BoardView Rev: 1.0
The program for viewing is attached.
