Lenovo IdeaPad 320S-14IKB 320S-15IKB 520S-14IKB
SKU: 12375
Project: Compal LA-E541P ( DIUYA/YB/SA/SB/SD ) Rev: 1.0, 2A
- Manufacturer: Compal
- SKU: 12375
- Unit: pcs
- Size: 4.34Mb
- Availability: In stock
- Tags:
5.25eur
4.50eur

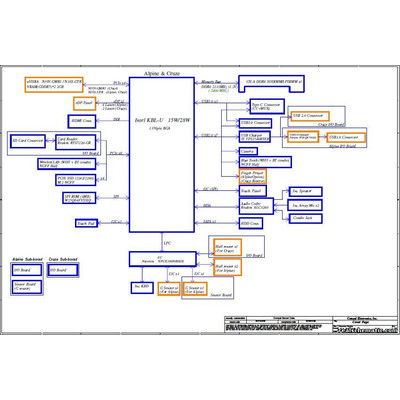

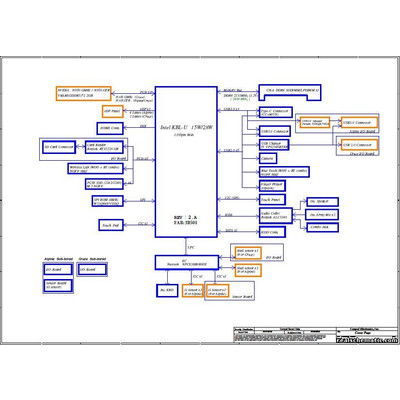

Schematic diagrams for Laptops Lenovo IdeaPad 320S-14IKB / IdeaPad 320S-14ISK / IdeaPad 320S-15IKB / IdeaPad 320S-15ISK / IdeaPad 520S-14IKB / IdeaPad Flex 5 1470 / IdeaPad Flex 5 1570 / Lenovo Yoga 520-14IKB
Project: Compal LA-E541P Rev: 1.0, 2A
Schematic diagrams for PCB marked CIUYA/YB/SA/SB/SD LA-E541P
Format: PDF
Total pages: 48 + 50 ( two revisions )

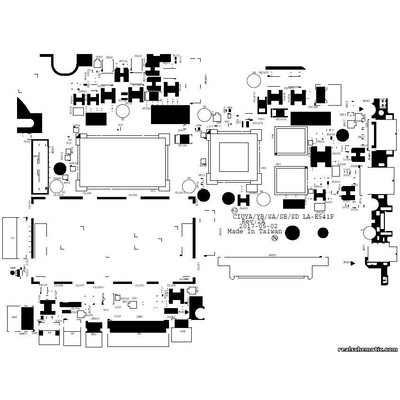

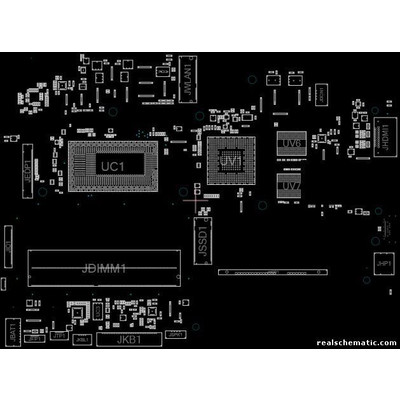

+ BoardView Rev: 1.0, 2A
Format: CAD ( Rev: 1.0 ) + PDF ( Rev: 2A )
The program for viewing is attached.
