ASUS Zenbook UX42V UX42VS series

5.0/1
SKU: 03483
BoardView for Laptops ASUS Zenbook UX42V / ZenBook UX42VS
  • Manufacturer: ASUS
  • CPU: Intel Ivy Bridge
  • VGA: Nvidia N13P
  • RAM: DDR3
  • SKU: 03483
  • Unit: pcs
  • Size: 329.5Kb
  • Availability: In stock
  • Tags: UX42V, ASUS, Zenbook UX42VS
4.50eur

BoardView for Laptops ASUS Zenbook UX42V / ASUS ZenBook UX42VS

Project: ASUS UX42VS   Rev: 2.0, 2.1

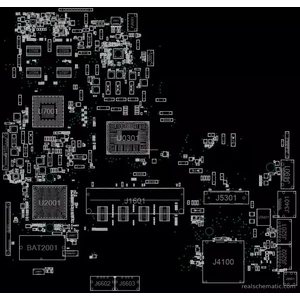

BoardView for motherboard marked UX42VS MAIN BOARD

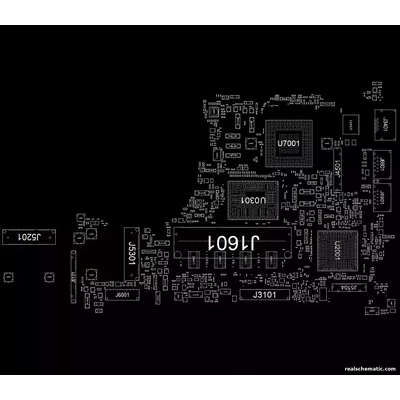

Two sides. Two revisions.

Format: FZ   ( shows the values / labeling of the components )

Shows positional designations, electrical circuits between components, and other details.

The program for viewing is attached.



BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
