Lenovo IdeaPad L340-15IRH L340-17IRH PCB: NM-C361
SKU: 12390
Schematic diagrams for Laptops Lenovo IdeaPad L340-15IRH, L340-17IRH Project: NM-C361
- Manufacturer: Lenovo
- SKU: 12390
- Unit: pcs
- Size: 4.68Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptops Lenovo IdeaPad L340-15IRH / Lenovo IdeaPad L340-17IRH
Project: NM-C361

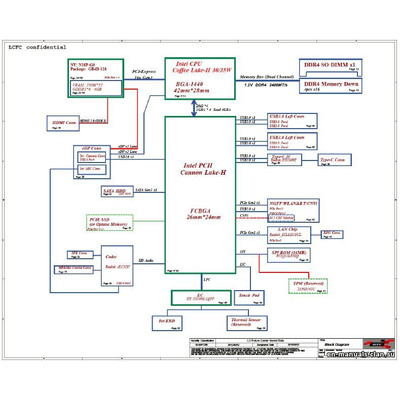

Schematic diagrams for PCB marked FG541/FG741 NM-C361
Format: PDF
Total pages: 68

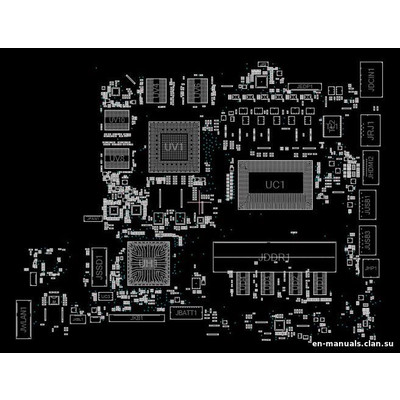

+ BoardView
The program for viewing is attached.
