Lenovo IdeaPad 330-15IGM
SKU: 12393
Schematic diagrams for Laptop Lenovo IdeaPad 330-15IGM Project: NM-B661
- Manufacturer: Lenovo
- SKU: 12393
- Unit: pcs
- Size: 4.77Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

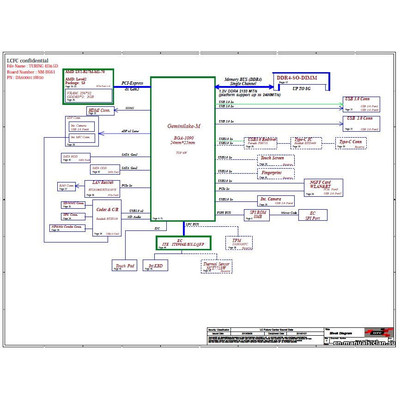

Schematic diagrams for Laptop Lenovo IdeaPad 330-15IGM
Project: NM-B661 Rev: 1.0
Schematic diagrams for PCB marked EG431/EG532/FG5N2 NM-B661
Format: PDF
Total pages: 60

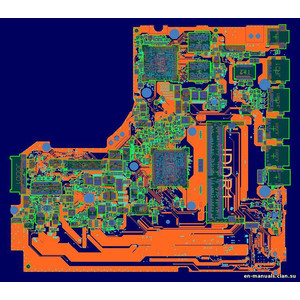

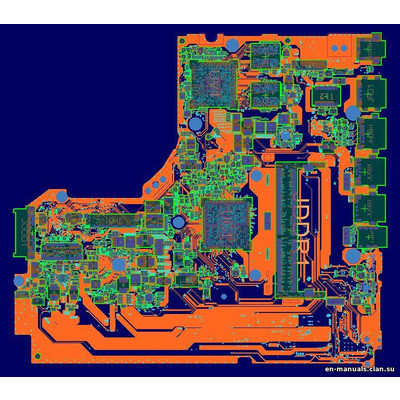

+ BoardView Rev: 1.0
The program for viewing is attached.
