Schematic diagrams for Laptop Dell Latitude E7270 Project: Compal LA-C451P
- Manufacturer: Compal
- CPU: Intel Skylake
- GPU: UMA
- RAM: DDR4
- SKU: 05341
- Unit: pcs
- Size: 1.92Mb
- Availability: In stock
- Tags:
4.50eur
3.50eur
Schematic diagrams for Laptop Dell Latitude E7270
Project: Compal LA-C451P Rev: 1.0
Schematic diagrams for motherboard marked AAZ50 LA-C451P Rev:1.0(A00)
Format: PDF
Total pages: 60
+ BoardView Rev: 1.0
Format: CAD
The program for viewing is attached.

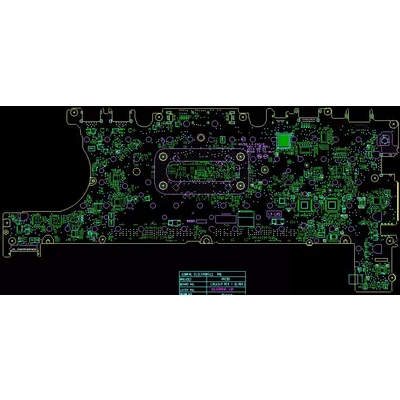

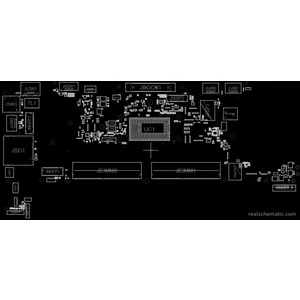

Multilayer BoardView Rev: 1.0 in BRD format is available (pictured #3, not included, price on request)
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
