Lenovo IdeaPad 320-15IKB 330-15IKB 330-15IGM
SKU: 12409
Schematic diagrams for Laptops Lenovo IdeaPad 320-15IKB, IdeaPad 330-15IKB Project: NM-B453
- Manufacturer: Lenovo
- SKU: 12409
- Unit: pcs
- Size: 7.15Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

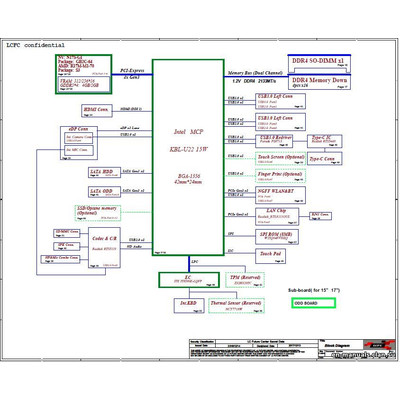

Schematic diagrams for Laptops Lenovo IdeaPad 320-15IKB / IdeaPad 330-15IKB / IdeaPad 330-15IGM
Project: NM-B453
Schematic diagrams for motherboard marked EG523 EG524 NM-B453
Format: PDF
Total pages: 60

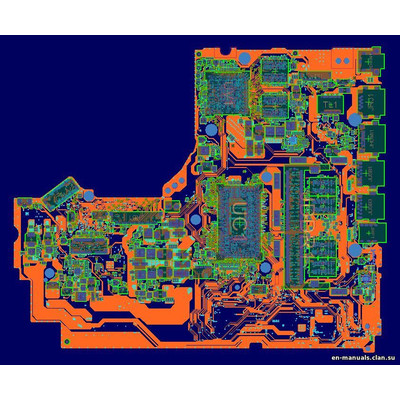

+ BoardView
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
