Schematic diagrams for All-in-One PC Acer Aspire C22-820 Project: Lengda ' IRON215G '
- Manufacturer: Lengda
- CPU: Intel Gemini Lake
- VGA: UMA
- RAM: DDR4
- SKU: 00557
- Unit: pcs
- Size: 5.65Mb
- Availability: In stock
- Tags:
5.25eur
Schematic diagrams for All-in-One PC Acer Aspire C22-820
Project: Lengda ' IRON215G '

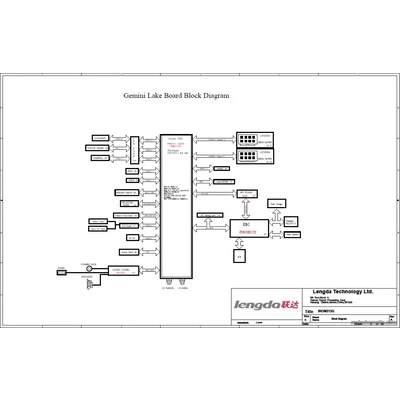

Schematic diagrams for motherboard marked IRON215GS_MAIN_PCB
Format: PDF
Total pages: 40

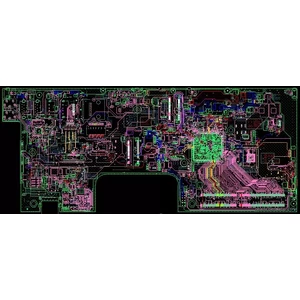

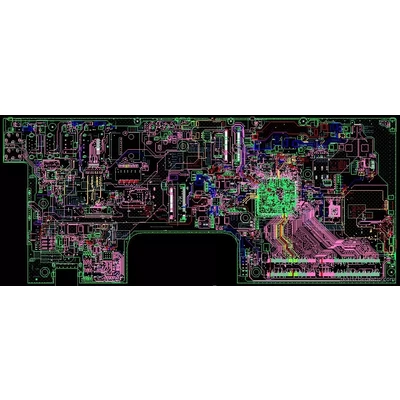

+ BoardView Rev: 1.01
Format: BRD multilayer ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
Similar products
Acer Aspire C22-1600 C24-1600 AiO

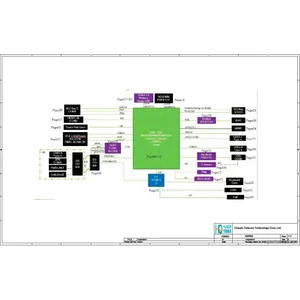

Schematic diagrams for All-in-One PCs Acer Aspire C22-1600 / C24-1600 AiO Project: Lengda ' Zebra JSP '
