Schematic diagrams for Laptops Acer Aspire A114-21, A115-22, A314-22, A315-23G Project: Z8E
- Manufacturer: Quanta
- CPU: AMD Dali
- VGA: AMD R19M / UMA
- RAM: DDR4
- SKU: 00566
- Unit: pcs
- Size: 2.43Mb
- Availability: In stock
- Tags:
4.50eur

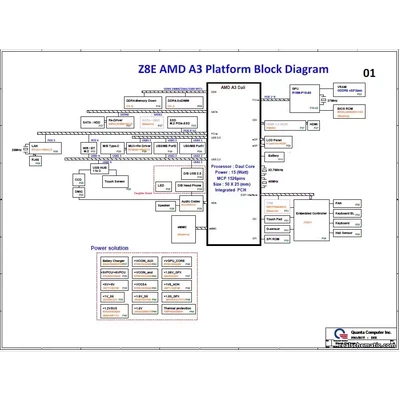

Schematic diagrams for Laptops Acer Aspire A114-21 / Aspire A115-22 / Aspire A314-22 / Aspire A315-23G
Project: Quanta Z8E
Schematic diagrams for motherboards with markings DA0Z8EMB8C0 REV:C, DAZ8EMB18A0 REV:A and similar
Format: PDF
Total pages: 44

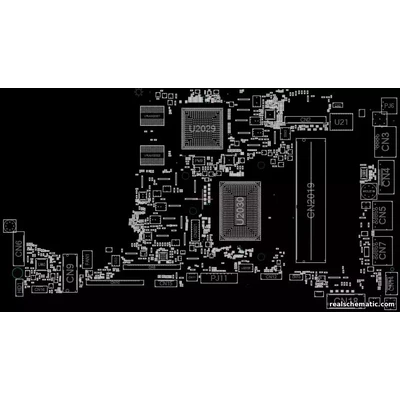

+ BoardView
Format: CAD
The program for viewing is attached.
Multi-layer BoardView Rev: C and program for viewing it are available (on request, included in the price).
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
