Dell XPS 15 9570 Precision 5530 PCB: LA-G341P
SKU: 05366
Schematic diagrams for Laptops Dell XPS 15 9570 / Precision 5530 Project: LA-G341P
- Manufacturer: Compal
- CPU: Intel Coffee Lake H
- GPU: Nvidia N17P / UMA
- RAM: DDR4
- SKU: 05366
- Unit: pcs
- Size: 3.21Mb
- Availability: In stock
- Tags:
5.25eur
4.50eur

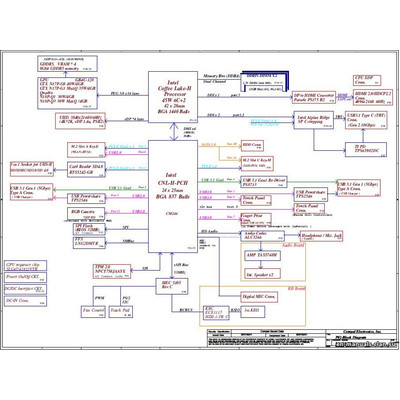

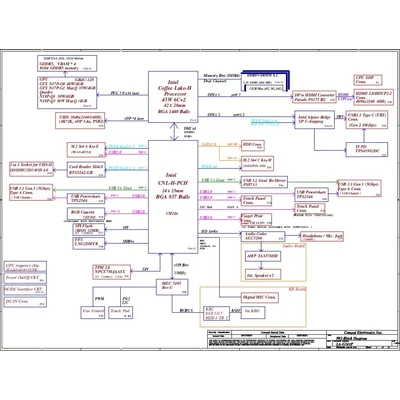

Schematic diagrams for Laptops Dell XPS 15 9570 / Dell Precision 5530
Project: Compal LA-G341P Rev: 1.0
Schematic diagrams for motherboard marked DDP00/DDB00 LA-G341P Rev:1.0(A00)
Format: PDF
Total pages: 76

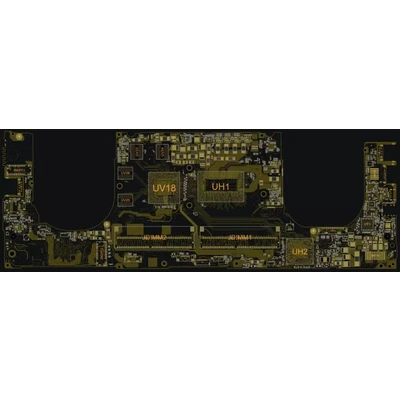

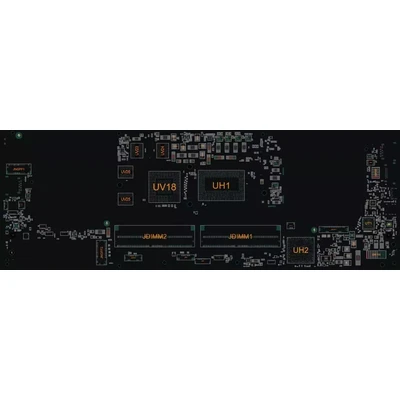

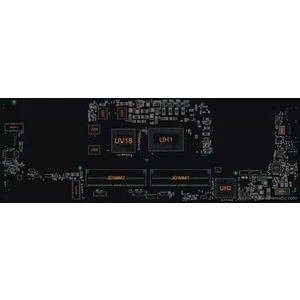

+ BoardView Rev: 1.0
Format: CAD
The program for viewing is attached.

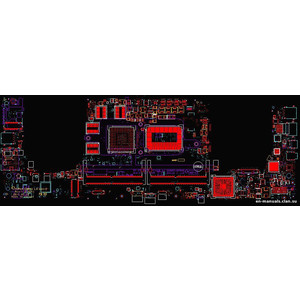

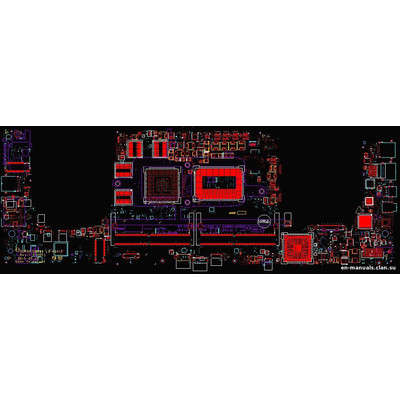

Multilayer BoardView in BRD format is available for order (pictured #3, not included in the price, upon request)
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
