Dell Inspiron 3555 / Dell Vostro 5100

Rating: 5.0/1
 4.50eur
Compare

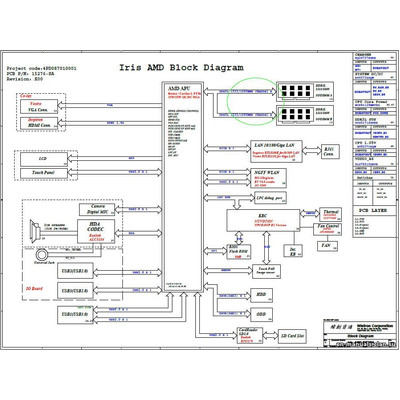

Schematic diagrams for Laptops Dell Inspiron 3555 / Dell Vostro 5100

Project: Wistron ' Iris AMD '

Schematic diagrams for PCB marked Iris AMD MB 15276

Format: PDF

Total pages: 104

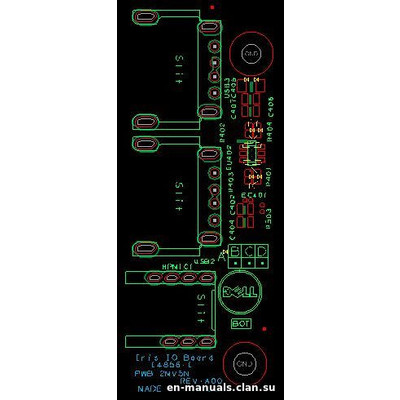

+ Schematic diagrams and BoardView for the Sub-board ' Iris IO Board 14856-1 '

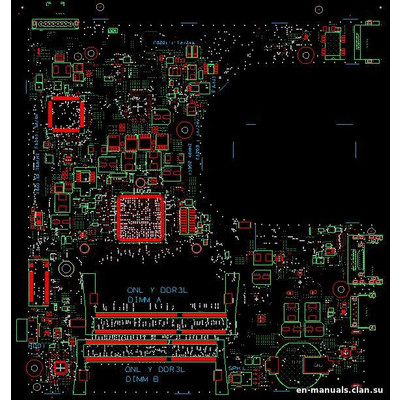

+ BoardView

The program for viewing is attached.

Added by: Dr-laptop, Saturday, 20.03.2021
